수직반송기
| 형식 | |
|---|---|
| 05 | 50kg 이하 |
| 10 | 500 ~ 1,000kg |
| 15 | 1,000 ~ 1,500kg |
| 20 | 1,500 ~ 2,000kg |
| 높이 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | ||
| 속도 | 05 | 80 | 73 | 68 | 08 | 55 | 49 | 44 | - | - | - | - | - |
| 40 | 90 | 84 | 79 | 74 | 66 | 59 | 54 | 49 | 45 | 41 | - | - | |
| 50 | - | - | 85 | 81 | 73 | 66 | 61 | 56 | 52 | 49 | 42 | - | |
| 60 | - | - | - | - | 79 | 72 | 67 | 62 | 58 | 54 | 47 | 41 | |
| 90 | - | - | - | - | - | - | 66 | 64 | 61 | 59 | 53 | 47 | |

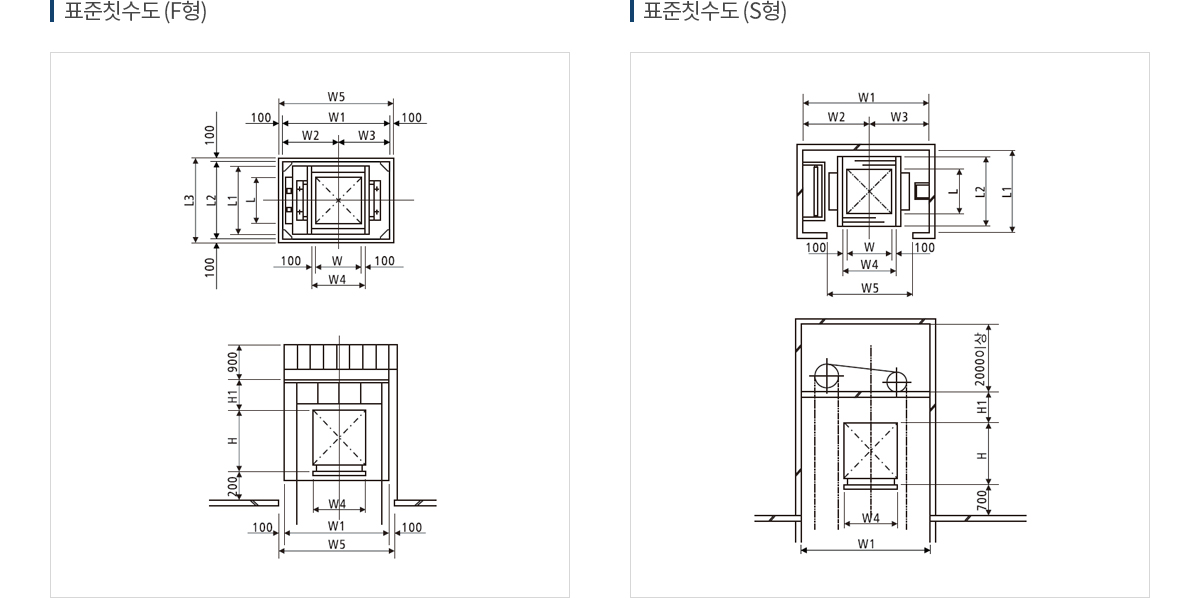

| 형식 | 파렛트칫수 | 화물칫수 | 콘베이어 칫수 |
관계칫수(F형) | 관계칫수(S형) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | L | W4 | L2 | W1 | W2 | W3 | W5 | L1 | L3 | H1 | W1 | W2 | W3 | W5 | L1 | H1 | |||
| 11 | 1,100 | 1,100 | 1,300 | 1,300 | 1,500 | 1,890 | 2,900 | 1,650 | 1,250 | 3,100 | 2,400 | 2,600 | 600 | 3,100 | 1,700 | 1,400 | 2,200 | 2,600 | 900 |
| 13 | 1,300 | 1,300 | 1,500 | 1,500 | 1,700 | 2,000 | 3,100 | 1,750 | 1,350 | 3,300 | 2,600 | 2,800 | 600 | 3,300 | 1,800 | 1,500 | 2,400 | 2,700 | 900 |
| 15 | 1,500 | 1,500 | 1,800 | 1,800 | 1,900 | 2,220 | 3,300 | 1,850 | 1,450 | 3,500 | 2,800 | 3,000 | 600 | 3,500 | 1,900 | 1,600 | 2,600 | 2,900 | 900 |
| 18 | 1,800 | 1,800 | 2,100 | 2,100 | 2,200 | 2,440 | 3,600 | 2,000 | 1,600 | 3,800 | 3,100 | 3,300 | 600 | 3,800 | 2,050 | 1,750 | 2,900 | 3,200 | 900 |
| 20 | 2,000 | 2,000 | 2,300 | 2,300 | 2,400 | 2,660 | 3,800 | 2,100 | 1,700 | 4,000 | 3,300 | 3,500 | 600 | 4,000 | 2,150 | 1,850 | 3,100 | 3,300 | 900 |
